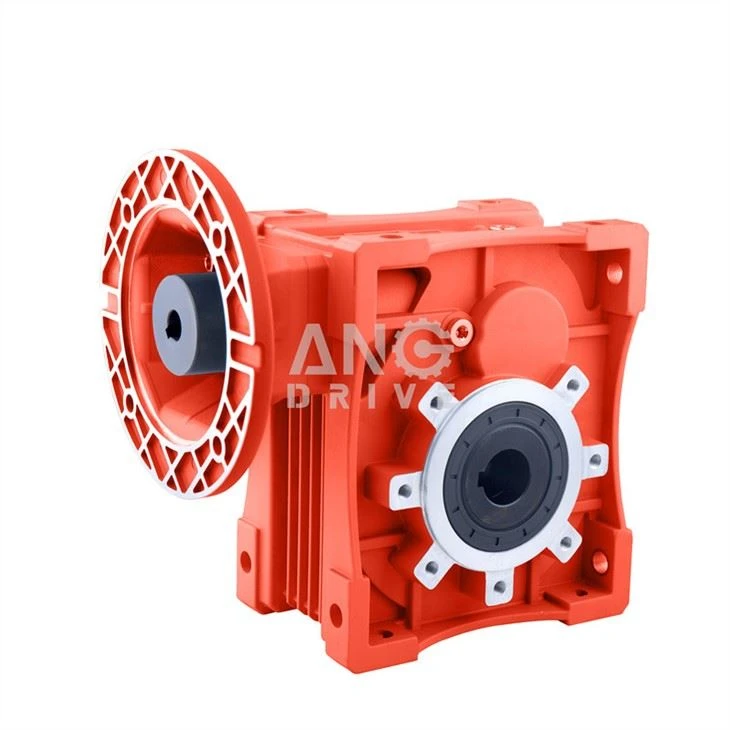

Hypoid Gear Box

Favorable price, fast delivery, timely service-- ANG is your reliable supplier of hypoid gear box which is free from oil leakage, low noise, low temperature rise, long service life, etc.

Glaoigh Linn

Réamhrá Táirgí

Features

1. Hypoid gear transmission.
2. Aluminum housing.
3. Common mounting dimensions.
4. Wide range of accessories.

Product Specification:

ANG Hypoid Gear Box
Model	AH40, AH50, AH63, AH75, AH90
Ratio	2 stage: 7.5, 10, 12.5, 15, 20, 25, 30, 40, 50, 60; 3 stage: 50, 60, 75, 100, 125, 150, 200, 250, 300.
Transmission Stage	B: 2 stages; C: 3 stages
Output torque	Up to 500NM
Motor power	0.12 4KW, with flange: B5 or B14
Housing material	Aluminum alloy
Transmission efficiency	B:92 percent -94 percent ; C:90 percent -92 percent
Dimension standard	Metric size / Inch size
Accessories	Flange / Solid shaft / Torque arm / Cover

Product contrast

The same and differences between Hypoid gear box and NMRV worm gear box

The same:

1. Installation type and mounting dimensions

2. Output form

3. Output structure

The differences:

Project	AH hypoid gear box	NMRV worm gear box
Transmission	Hypoid gear, Cylindrical gear	Worm wheel, worm shaft
Transmission efficiency	High (90 percent -92 percent )	Low (45 percent -85 percent )
Bearing capacity	1-1.5	1
temperature rise	30 degree	60 degree
Running temperature	50 60 degree	70 80 degree
The sealing reliability	High	Low
Life	Long	Short
Self-locking	None	Some ratio
Extension shaft	Non	Some
Output bore size (dia. mm)	AH50: 24 or 25	NMRV50: 25
	AH63: 25	NMRV63: 25
	AH75: 28	NMRV75: 28
	AH90: 35	NMRV90: 35

Input /output connection

1. This series gear box could use an input flange (B5 or B14) or input shaft, and hollow output shaft.

2. If you remove the flange and bush from the gear box with input flange, replace it with an oil seal, it could become the reducer with input shaft. And it also could be reversed.

3. Gear box could be added with an output shaft.

4. Gear box could be added with an output flange.

5. Gear box could be added with a torque arm.
